Overview

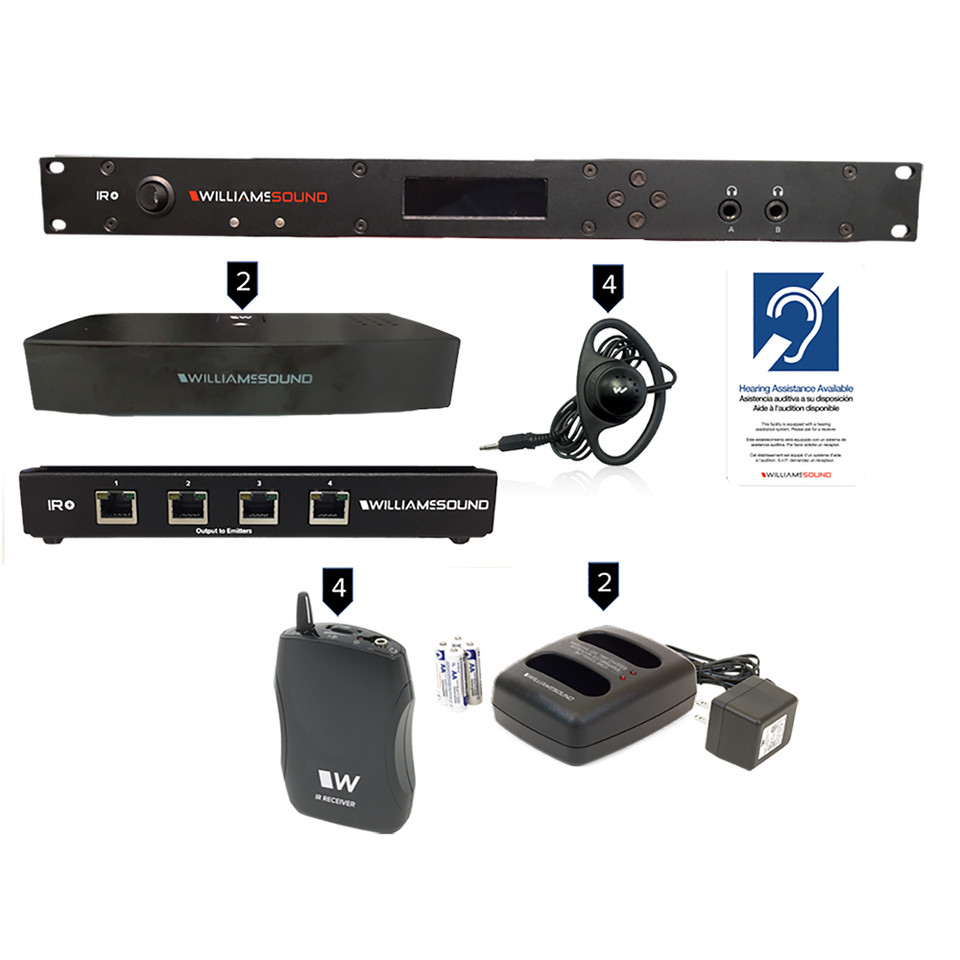

Commercial-grade, large-area Dante infrared system with IR+ transmitter, 2 emitters and array.
System Includes
(1) IR M1 D infrared modulator with Dante input
(2) IR E4 emitters
(1) IR A4 array
(4) WIR RX22-4N receivers
(2) BAT KT6 dual bay chargers
(4) EAR 022 earphones
(1) IDP 008 ADA wall plaque
Specifications
IR M1
| Dimensions: | 19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm) |
| Weight: | 5.2lb. (2.4 kg) |
| Color: | Black |
| Rack Mount: | Single Rack Unit |
| Power Supply: | International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive |
| Power Switch: | Rocker switch with LED |
| Signal to Noise Ratio: | 67 dB (typical) |
| Modulation: | FM Wideband, +50kHz deviation, 50uS pre-emphasis |
| Carrier Frequency: | Selectable, 2.3/2.8 or 3.3/3.8MHz |
| Frequency Response: | 40 to 16,000Hz, +1 dB, -3dB, electrical response |
| Total Harmonic Distortion: | Less than 2%, electrical response |
| Audio Processor Functions: | DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control |
| Auto Carrier Shut-Off: | Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage. |
| Infrared Test LED: | Dual IR LED for receiver testing, monitoring, and audio signal testing. |
| Audio Input: | (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power |
| Dante: | Optional |
| Internal Test Tone: | 400 Hz internal test tone selectable as audio input source for setup and diagnostics |
| Remote Configuration: | Available through embedded website |
| Headphone Output: | (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs |
| Emitter Output Jack: | Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission. |
| Operating requirements: | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals: | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Warranty: | 2 years on Modulator, 90 days on accessories |
IR E4
| Dimensions: | 7.5” (W) x 1.4” (H) x 3.6” (D) (19.1 cm x 3.6 cm x 9.1 cm) |
| Weight: | 0.8 lb (362 g) |
| Color: | Black |
| Power: | 48 VDC supplied by IR M1 via CAT 5e cable. |
| Coverage Area: | Up to 18,000 square feet in single channel mode |
| Connectivity: | +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1. |
| Operating requirements: | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals: | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Warranty: | 2 years on Emitter; 90 days on accessories |
CHG 520
| Dimensions: | 12″L x 6.25″W x 1.5″H (30.48 cm x 15.875 cm x 3.81 cm) |
| Weight: | 13.6 lbs |
| Color: | Black metal and plastic |
| Power Supply Input: | 120 VAC |
| Power Supply: | 100-240V / 12VDC TFP 043 |
| Unit Capacity: | 5 Units |
| Indicators: | Individual Charging Indicators: Red LEDs |
| Warranty: | 1 year (90 day warranty on cables and power supply) |
| Approvals: | WEEE, RoHS, CE, FCC, CANADA, RCM, VCCI |
IR RX20
| Weight: | 1.6 oz |
| Material and Color: | IR Transparent polycarbonate, black |
| Battery Type: | LiPo |
| Battery Life: | 8 hours |
| Battery Charger: | CHG 520 |
| Operating Temp: | 32-122° F (0-50° C) |
| Range: | Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter |
| Operating Frequency: | 2.3 MHz or 2.8 MHz or stereo |
| Frequency Response: | 100 Hz to 12 kHz, ± 3 dB |
| Signal to Noise Ratio: | 60 dB at 10 m |
| Controls: | Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power |
| Acoustic Output: | 120 dB MAX SSPL90 with 2 cc coupler |
| Compatibility: | Compatible with 2.3 MHz and 2.8 MHz IR transmitters |
| Headphone Jack: | 3.5mm stereo |
| Ear pads: | EAR 089 |
| Approvals: | CE, RoHS, FCC, Canada, RCM, VCCI, WEEE |
| Warranty: | 5 years (90 days on battery) |
