Overview

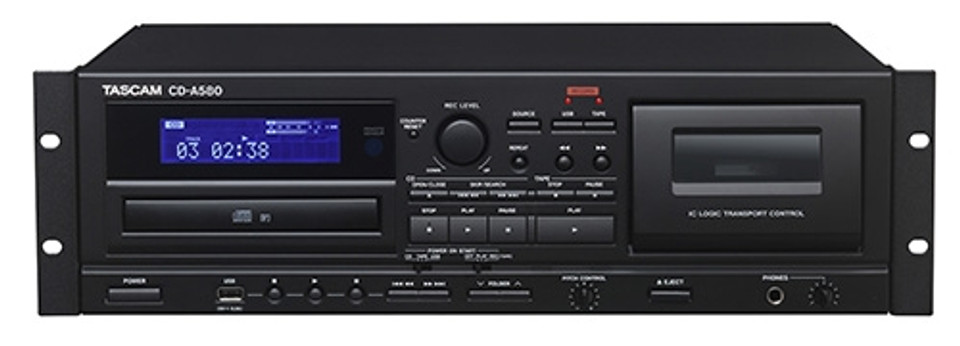

The CD-A580 combines a cassette recorder, CD player and USB flash drive recorder/player into a rack-mountable unit – perfect for installation and professional applications. Not only compatible with the most popular types of media, the CD-A580 allows cassette tapes to be dubbed to USB media for archival.
Features
Cassette deck
- One-way IC Logic transport control enables recording and playback
- Dub from CDs
- Dub from USB flash drive and recording from LINE Inputs
- ±10% pitch control
- Supported cassette tape types
Playback: normal (TYPE I), chrome (TYPE II), metal (TYPE IV)
Recording: normal (TYPE I), chrome (TYPE II) - Recommended tape length: 10 minutes to 90 minutes
- Power-on recording/playback functions
CD Player
- Playback of audio CDs, CD-R, CD-RW discs and data CDs (MP3 files) supported
- Shuffle and program playback supported
- Single/All Folder repeat playback
- Power-on playback functions
USB flash drive recorder/player
- Recording as MP3 files possible from CD, cassette and line input sources
- MP3 file playback
- Shuffle and program playback supported
- Single/All Folder repeat playback
- Manual file division (TAPE/LINE)
- Power-on playback functions
General
- Headphone jack with level control
- Wireless remote control included
- LCD display with level meters
- 3U rackmount size
- RoHS supported
Specifications
CD Player section
| Supported disc | CD / CD-R / CD-RW (12cm / 8cm) |
| Disc format | |
| Audio CD | CD-DA |
| Data CD | ISO9660 Level 1/Level 2 |
| Supported format | |
| CD-DA | |
| Sampling frequency | 44.1kHz |
| Quantization bit rate | 16-bit |
| Channel | 2 |
| MP3 | |
| Mode | STEREO / JOINT STEREO / DUAL CHANNEL / MONO |
| Sampling frequency | 16k to 48k Hz |
| Bit rates | 8k to 320k bps *DRM (Digital Right Management) not compatible |
USB section
| Playback Format | |
| Format | MP3 |
| Sampling frequency | 16k to 48k Hz |
| Bit rates | 8k to 320k bps *DRM (Digital Right Management) not compatible |
| Record Format | |
| Format | MP3 |
| Sampling frequency | 44.1kHz |
| Bit rates | 128kbps |
| Folder levels | 8 levels supported |
General
| Inputs/Outputs | |
| LINE IN | |
| Connector | RCA Pin jack × 1 pair |
| Nominal Input level (TAPE) | –4.5dBu (0.46V) (Input impedance more than 50kΩ) |
| LINE OUT | |
| Connector | RCA Pin jack × 1 pair |
| Nominal Output level (TAPE) | –4.5dBu (0.46V) (Input impedance more than 50kΩ) |
| Maximum Output level (CD) | +6dBV (2.0V) |
| USB | |
| Connector | USB A-type × 1 |
| Interface | USB1.1 FULL SPEED (12Mbps) |
| Headphone out | |
| Connector | 1/4" (6.3mm) Stereo phone jack × 1 |
| Nominal output level | 10mW + 10mW (THD+N 0.1%, 32Ω under CD MONITOR) |
| Power | AC 120V, 60Hz |
| Power Consumption | 13W |
| Dimensions (W×H×D) | 19.0" × 5.5" × 11.4" / 483 × 138.5 × 290 mm |
| Weight (Net) | 13.2 lbs. / 6.0 kg |
| Operating temperature | 41˚F to 95˚F / 5˚C to 35˚C |
| Accessories | Remote control (RC-1329), AAA batteries × 2, Rack mounting screw kit, Owner’s manual (Warranty card) |
| Track system | 4-track-channel, stereo |
| Head structure | Record/playback head × 1, Erase head × 1 |
| Tape type | Cassette tape C-10 to C-90 |
| Tape speed | 4.76cm/sec |
| Motor | DC servo motor × 1 |
| Supported Cassette tape | |
| Playback | Normal (TYPE I), Chrome (TYPE II), Metal (TYPE IV) |
| Recording | Normal (TYPE I), Chrome (TYPE II) |
| Pitch Control | ±10% (Playback only) |
| Required fast winding time | Approximately 120 sec (C-60 tape) |
