Overview

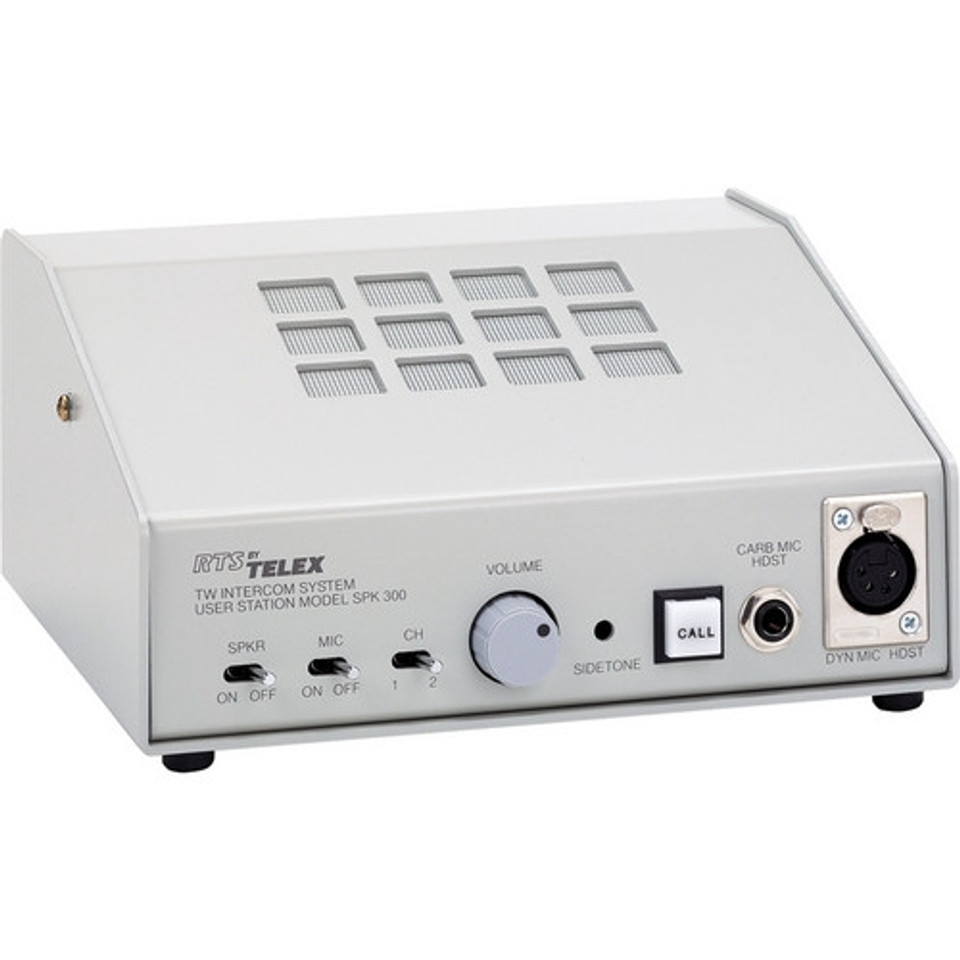

RTS' SPK-300L A5F is a 2-channel select portable speaker user station. It can be used as a "public" listen box via built-in speaker or privately through the headset connection. Features channel select switch, call light, speaker on/off switch and dual-purpose portable desktop volume control. Packaged in a rugged all-metal housing perfect for table-top operation. The SPK-300L comes with a hand-held microphone.

Specifications

• Power Consumption:
• Quiescent: 10 to 40 mA
• Operating, 25 ohm phones: 50 mA
• Operating, 25 ohm phones + call light: 70 mA
• Operating, 8 ohm speaker: 100 mA
• Dimensions: 4.0" (101.6 mm) high, 8.0" (203.2 mm) wide, 8.0" (203.2 mm) deep
• Weight: 3.5 lb (1.58 kg)
• Headset Connector: 5-pin XLR
