GENERAL DESCRIPTION

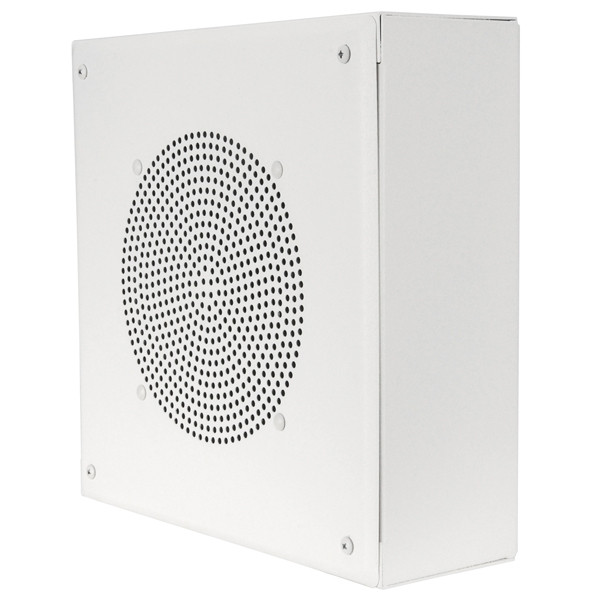

The SYSTEM 1 is a complete loudspeaker system consisting of an 8C5PAX - 8Ω O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W 25/70V transformer mounted on a BS8W - square, screw mount, steel baffle with a SE1WVP - square, steel, vandal resistant, surface mount enclosure with four (4) 8-32 threaded inserts and a single 1/2"conduit entrance. White powder coat finish..

Intended Use - Indoor Environment

Program Material – Paging, signal tones, voice, and background music Installation – Vertical or horizotal surface mount

Audio Specifications

Average Sensitivity – 92 dB SPL, 1W/1M Loudspeaker Power Rating – 12W RMS EIA 426A Standard Maximum Output – 15W @ 8 Ohms Calculated Output – 99 dB-SPL 5W/1M Magnet Type & Weight – BeFe Ceramic, 4.8 oz. Nominal Frequency Response – 65 Hz - 17 kHz EIA 426A Standard Nominal Coverage Angle – 90° Included Angle -6 dB / 2 kHz, Half space Audio Connection – 7” color-coded pigtails, pre-cut

System Components

Loudspeaker – 8C5PAX Transformer – 25/70V 5W-5 tap Color Coded Leads (5W, 2.5W, 1.25W, 0.63W, 0.31W) Baffle – BS8W Enclosure – SE1WVP
