Overview

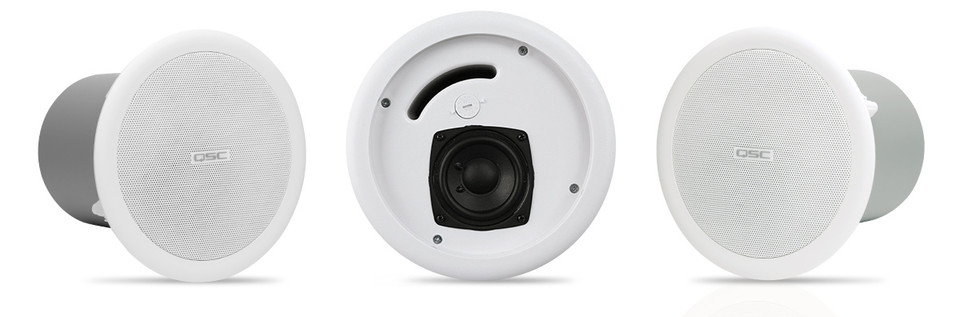

2.75" Full-range ceiling speaker, 70/100V transformer with 8Ω bypass, 170° conical coverage, includes C-ring and rails for blind mount installation. Priced individually but must be purchased in pairs.
Features
- High quality 2.75-inch full-range transducer provides exceptional clarity through the critical voice range.
- Low-saturation 70V/100V transformers with 8-ohm bypass.
- 4-pole Euroblock connector for easy system wiring.
- Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
- White (RAL 9010) with UV inhibitors to match complementing QSC product families.
- Complete EASE, CAD, and BIM information available online.
Specifications
| Effective frequency range | 70 Hz to 20 kHz |
| Rated noise power / voltage | 16 watts / 11.3 volts (rms) |
| Broad-band sensitivity | 84 dB |
| Coverage angle (-6 dB) | 170° (500 Hz to 5 kHz) |
| Maximum continuous SPL | 96 dB |
| Maximum peak SPL | 102 dB |
| Rated impedance | 8 ohms |
| Transformer taps: | |
| 70 V | 16, 8, 4, 2, 1 watts and 8-ohm bypass |
| 100V | 16, 8, 4, 2, watts and 8-ohm bypass |
| Transducer | 2.75-inch treated paper cone with rubber surround |
| Input connector type | Euroblock connector with parallel output terminals |
| Baffle material | Painted ABS polymer |
| Grille material | Powder coated steel |
| Back can material | Powder coated steel |
| Testing | Listed UL1480, UL2043 safe for use in air handling space |
| Net weight | 4.2 lb / 1.9 kg |
| Product dimensions | 8.4-inch × 7.9-inch (214 × 201 mm) |
| Cut-out Dimensions | 7.31-inch (185.67mm) |
| Ceiling Capture Thickness | 0.25-inch to 1.5-inch (6.35 to 38.1mm) |
| Shipping weight | 15.1 lb / 6.86 kg |
| Shipping dimensions | 10.75-inch × 24-inch × 10.5-inch (273.1 × 609.6 × 266.7 mm) |
| Included accessories | Rails and C-ring for ceiling tile installation |
| Optional accessories | AC-MR4 mud ring for sheet rock installation |
