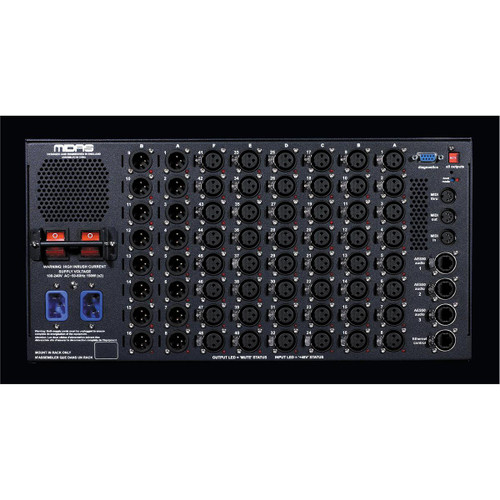

The Midas DL251 48 X 16 Fixed Format I/O Unit comes with forty-eight microphone/line inputs and sixteen line outputs. Limited to analog connections, the unit provides a more cost-effective solution for those not needing the flexibility of MIDAS modular I/O hardware.
MIDI (In, Out, Thru) connectors and an Ethernet control port are fitted as standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL251 is capable of being switched between 96 kHz and 48 kHz via the front panel switch. On the rear panel there is a Mute All Outputs button for onstage re-patching. The unit is also equipped with dual-redundant PSUs. Midas' DL251 is a 5RU fixed configuration I/O unit with 48 mic/line inputs and 16 mic/line outputs.
Features:
- 48 remote control mic/line audio inputs, fixed configuration
- 16 audio line outputs, fixed configuration
- Dual-redundant PSUs
- Digital snake and distribution network component
- 48 audio outputs x 16 audio inputs configuration for snake applications
- 5U 19" rack-mountable form factor
Specifications
| Sample Rates | 48 or 96 kHz |
| Analog Inputs | 48 x XLR 3-pin female Microphone/Line |
| Analog Outputs | 16 x XLR 3-pin male Line |
| Other Connectors | 1 x RJ45 Ethernet 3 x Neutrik etherCON ports 3 x 5-pin DIN MIDI In, Out, Thru 1 x 9-pin D-Sub (diagnostics) |
| Power Requirements | 100~240VAC, 50/60 Hz |
| Dimensions | 19" 5U rackmount |
