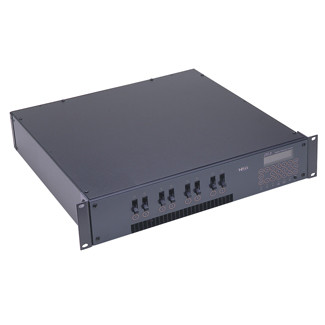

Leviton NDS08-2K0

DS 8-24KO 8 CH. 2400W Modular System KNOCK-OUT PANEL

SKU: NSI-NDS084042K0

MSRP: $2,323.36

MAP: $2,123.55

Fully Modular Design
Dimmer and Control Modules are Easily Serviced Using Removable Front Panel While Dimmer Remains in Rack
8 Channels
2400 Watts Per Channel
16 Character X 2 Line Backlit Liquid Crystal Display
20 Button Function Keypad
Non-Volatile EEPROM Preset and Softpatch Storage
Softpatch Capable
Programmable Time Fade Presets
Programmable Bump Buttons
Front Panel Accessible DMX512 Termination Switch
Magnetic Circuit Breakers
Voltage Regulation
DMX512 Control Input (5 pin XLR)
NSI Micro-Plex Control Input (3 pin XLR)
NSI Luma-Net® Architectural Control Input
0-10VDC Analog Control Inputs
120V Input Power- Single Phase & Three Phase Available
15V RMS Preheat Range
Full On Test/Focus
Over Voltage and Over Temperature Protection
Valid DMX Signal Indicator
Valid NSI Micro-Plex Signal Indicator
Line Power Indicator LEDs
Temperature Status LED

Specifications:

Dimming:

Individual dimmer test/lamp focus buttons
10,000 AIC branch rated fully magnetic circuit breakers
Rugged dual SCR dimmer design
Automatic line regulation/compensation for power fluctuations
8 channel/single phase power operation
12 channel/single or three phase power operation
Available in Edison/U-ground, stage pin or hardwired versions
1 output per dimmer
Programmable maximum and minimum levels for each dimmer
Pre-programmed dimming curve for Advance Mark X™ fluorescent dimming ballast
LCD dimmer feedback including current temperature, control level and type of control signal

Mechanical:

Modular Rack Dimmers:

Highest power density on the market, requiring only 2 EIA 19" rack spaces
Internal variable speed cooling fan
Recommended minimum of one rack space between packs to maintain adequate cooling

Control:
