Overview

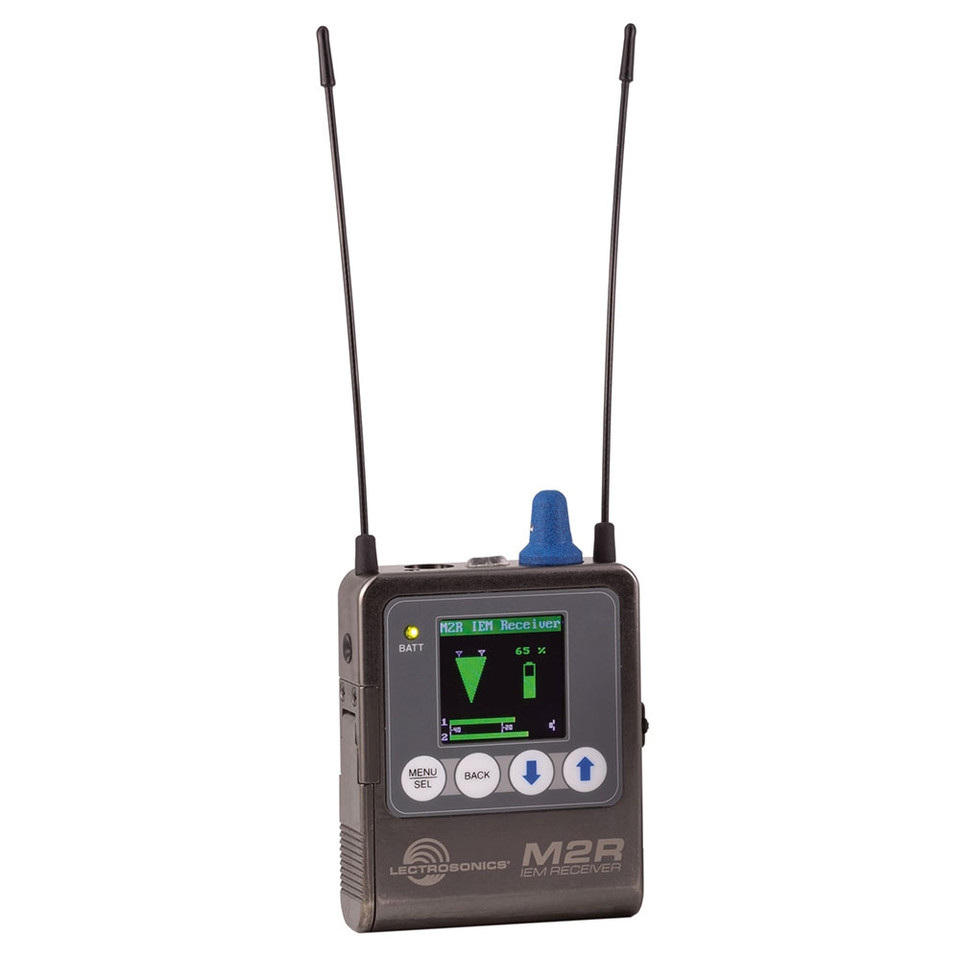

The M2R bodypack receiver employs advanced antenna diversity switching during digital packet headers for seamless audio. The 24 bit digital audio stream guarantees high resolution sound quality with wide dynamic range, low noise floor, and rock-solid stereo image. The receiver can select from stereo, mono from left channel only, or mono from right channel only, giving the unit flexibility in terms of the application. The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive headphones or earphones to sufficient levels for stage performance or other environments with significant background noise. A high-resolution, color LCD allows for a wide range of menu options, including precise limiter settings, using detailed graphics. The M2R runs on two AA batteries for an operating time of over 4 hours with alkaline cells.

Features

• IEM (Wireless Monitor) receiver with digital RF
• 24-bit digital audio
• IR (infrared) port for fast setup
• High resolution, color LCD
• Stereo or mono operation
• Low latency of 1.4 ms with analog inputs

Specifications
