SKU: HR-UVA-8
MSRP: $1,143.45
MAP: $1,086.28

Overview

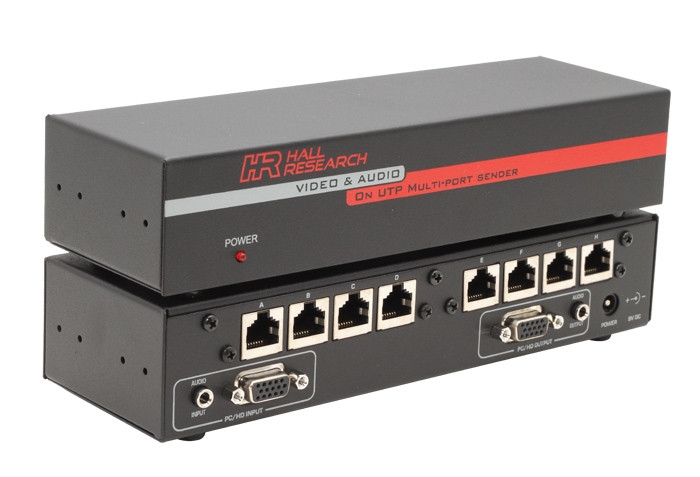

The UVA-8 Mini-Cat® is an 8 port Video and Audio over UTP (Cat5/5e/6) splitter/transmitter. The UVA-8 Mini-Cat® can transmit the Video and Audio to 8 independent locations up to 1,000 feet each.The UVA-8 Mini-Cat® supports resolutions up to 1920x1440 at 60Hz. Made in the USA.

Features

  • Support for local monitor at transmitter
  • Multiple Cat5 outputs
  • Transmit video and audio on one cable
  • Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
  • Amplifies the signal for clean and crisp transmission
  • Differential signaling eliminates ground loops and noise
  • Handles resolutions up to 1920x1440 at 60Hz
  • Rugged, Reliable, Compact size
  • Drive standard Cat5 cables to 1,000 feet

Specifications

  • Dimensions:  1.32" H x 7.58" W x 3.88" D (UVA-8 has 2 L-shaped mounting ears that protrude 0.88" beyond the main box on each side). 4 mounting holes are present on a rectangular pattern of 8.62" x 2.63"
  • Weight: 4 lbs. (shipping)
  • Power Supply: From utility-power (mains) outlet, through included external Universal power supply. Output Voltage: 6V DC Center-Positive. Do not substitute any other external power supply without contacting the factory first
  • Max Distance: Up to 1000 feet
  • Resolution: Up to 1920x1440 non-interlaced at 60Hz
  • Standards: VGA through UXGA, RGBS or RGB
  • Video Types: VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
