Overview

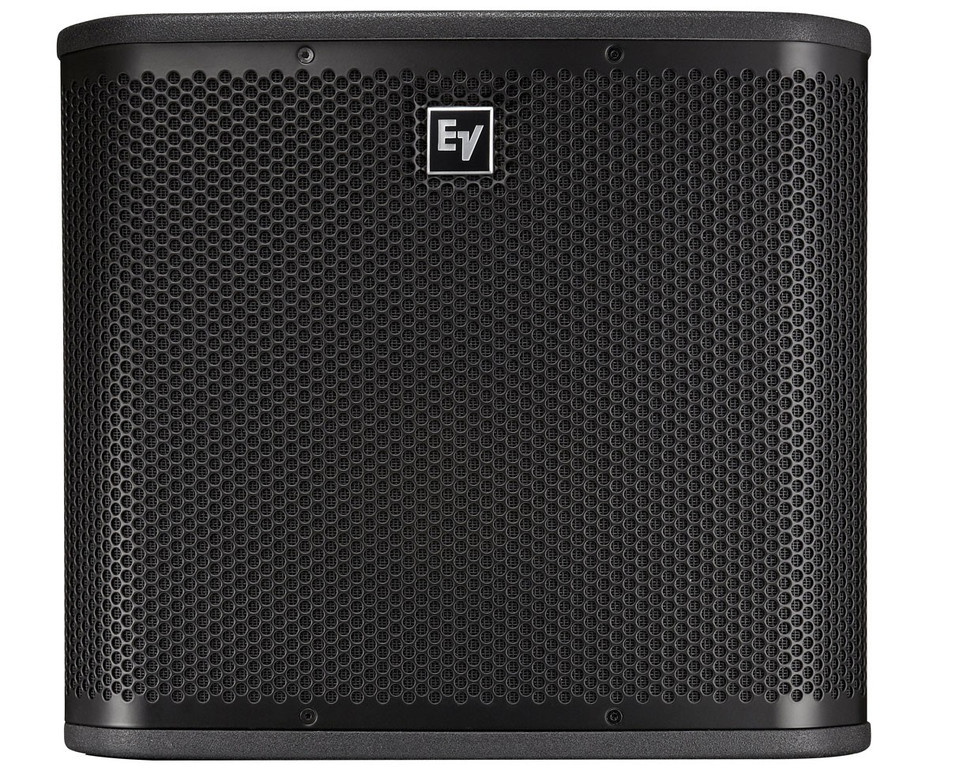

Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.
FEATURES:
- 15mm Plywood Enclosure Internally Braced with Textured Paint
- EVS-12S 305mm (12”) Woofer for Powerful Engaging Bass Response
- Class D Lightweight Amplifier
- Pole Mount for Full-Range Systems
- Dual XLR Inputs and Outputs
- Switchable EQ Modes for Different Applications
- LED indicators for Power On and Limit
Specifications
|
Type |
Active, front-firing |
|
Cabinet |
15mm 9-ply wood with internal bracing and black textured paint |
|
Woofer |
12" (305 mm) EVS-12S woofer |
|
Coverage |
Omnidirectional |
|
Frequency Response |
44 to 116 Hz |
|
Amplifier |
700 W, Class-D |
|
SPL |
126 dB max |
|
Connectors |
2 x XLR inputs |
|
High-Pass Filter |
100 Hz, selectable |
|
Power Requirements |
90-132 VAC, 1.0 A, 50/60 Hz (1/8 power) |
|
Dimensions (HxWxD) |
Not specified by manufacturer |
|
Weight |
46 pounds (20.9 kg) |
|
Packaging Info |
|
|
Package Weight |
59.1 lb |
|
Box Dimensions (LxWxH) |
22.3 x 19.4 x 17.9" |
