Overview

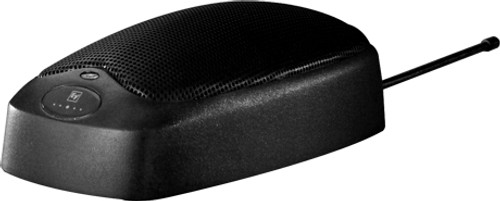

The PC Boundary is a very low-profile area microphone that can be used on any surface and with virtually any mic mixer. Featuring multiple on-board polar patterns—three directional and one omni—the PC Boundary is ideal for any installation where premium-grade area coverage is required.
Features
- Easy switching between omni, cardioid, supercardioid, or figure “8” polar patterns
- Versatility for different acoustic environments
- Consistent microphone voicing across all four patterns
- Easy-to-use mute switch, programmable for either latching on/off or momentary operation
Specifications
| Case Material | Steel |
| Connector Type | 3-pin XLR |
| Element | Dual condenser (back-electret) |
| Family | PolarChoice |
| Finish | Non-reflective camera black |
| Frequency Response (-3 dB) | 50 - 20,000 Hz |
| Impedance, Low-Z balanced | 200Ω |
| Mic Type | Boundary |
| Open Circuit Voltage | 31.5mV/Pascal |
| Polar Pattern | Omni, Cardioid, S-cardioid & Figure 8 |
| Power Requirement | 12 - 52 VDC |
