Overview

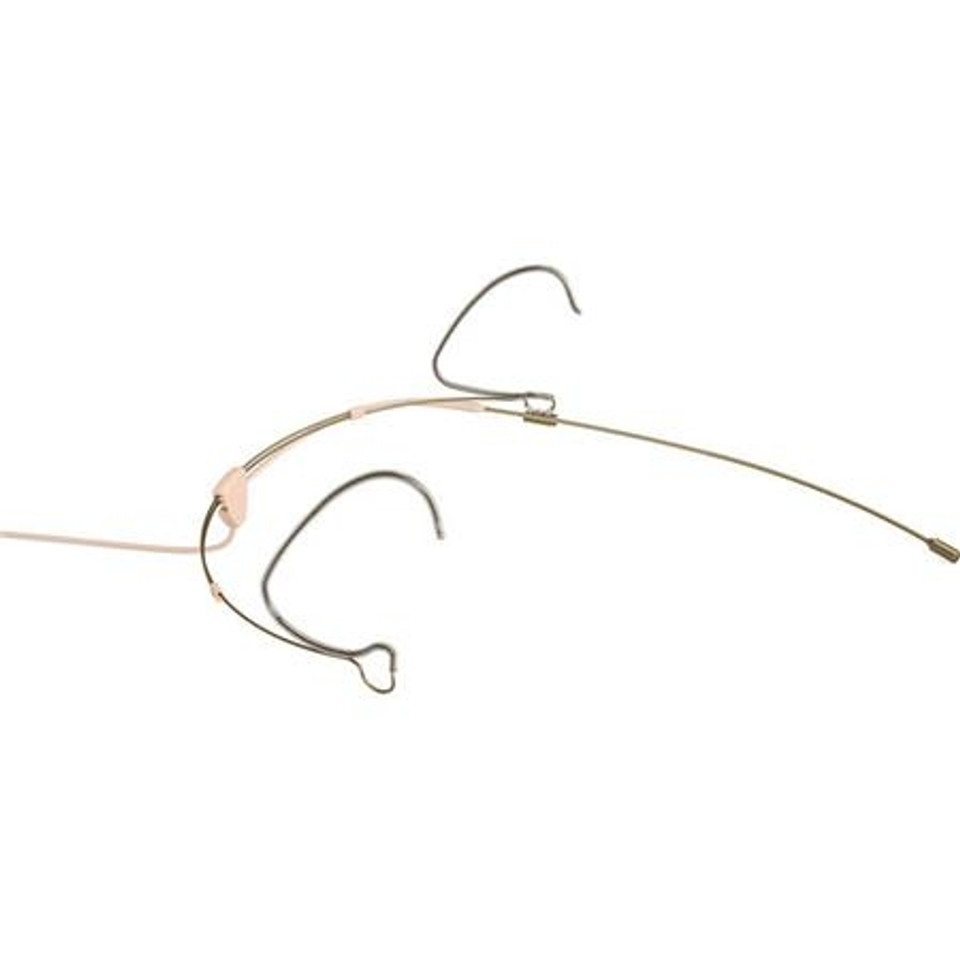

The capsule of the d:fine CORE 6066 Subminiature Headset is just 3mm (0.12") in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability - three qualities that truly matter.

Specifications

• Connector: TA4F Mini-XLR
• Color: Beige
• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Principle of operation: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
• Total harmonic distortion (THD): < 1% up to 128 dB SPL peak
• Dynamic range: Typ. 102 dB
• Max. SPL, peak before clipping: 144 dB
• Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
