Overview

Low Voltage DMX Decoder

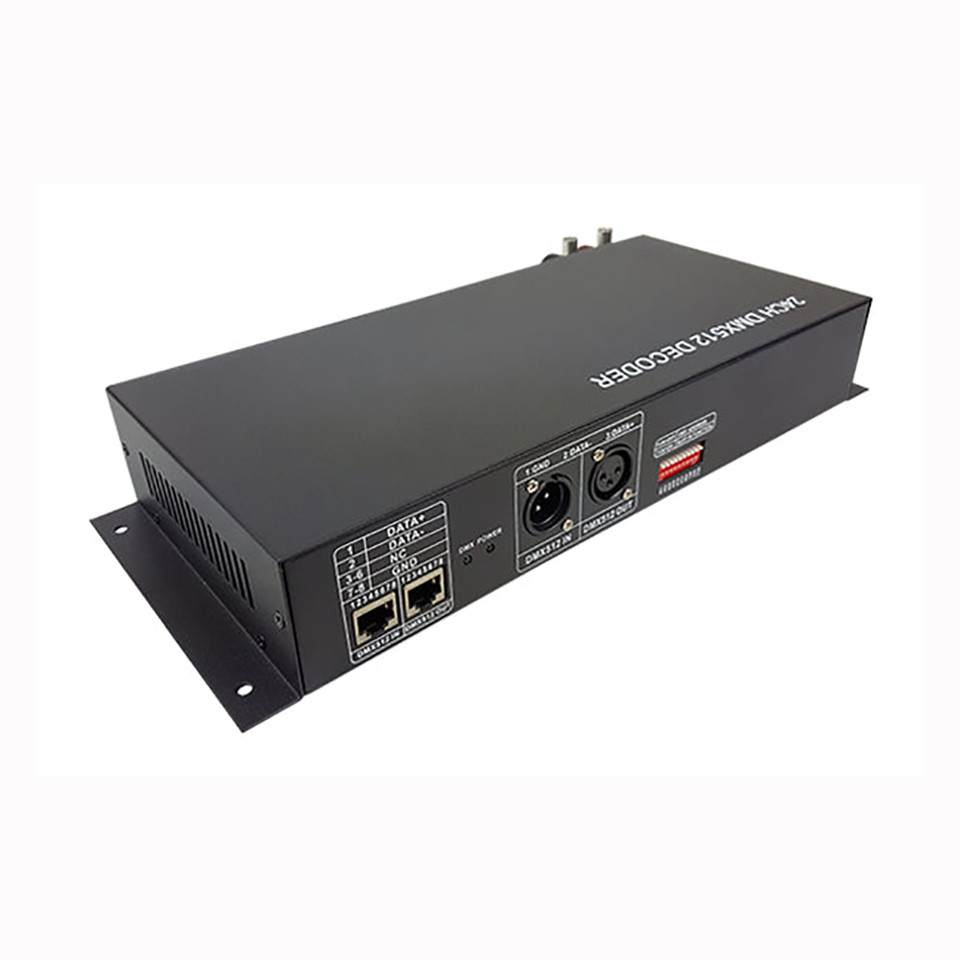

Komply DMX-24 is a 24-channel (8x RGB) DMX decoding driver designed to convert a universal DMX512 digital signal to PWM signal. It can be controlled by DMX512 console, with 256-level gradation.

It features 24 total output channels, 2A per channel, RJ45 In/Out, DMX In/Out, and is dipswitch addressable.

Features

• Converts DMX512 signal to PWM signal
• 1~24 output channels (8x RGB)
• 256-grayscale levels per channel

Specifications

Overview

• Working temperature: -24 to 60C

Power

• Input voltage: 12V to 24V
• Input DMX Signal: DMX512/1990 digital
• Output: 24 channels @ up to 2A per channel
• Output power: 12V:<576W, 24V:<1152W

Warranty

• 2-year limited warranty

Dims & Weight

• 13.3" L x 5.5" W x 2.2" H
• 3.0 lbs
